Key Takeaways About Panel Surge Rating
Panel surge rating describes how much transient energy a service panel or surge device can safely absorb. This matters for homeowners and property managers when storms, utility switching, or repeated electronics failures occur.
- Identify visible panel damage such as scorch marks or melted insulation.
- Prevent damage by coordinating a service entry SPD with panel capacity.
- Avoid using vulnerable electronics during storms without layered protection.
- Spot nuisance resets and tripped breakers as early warning signs.
- Reduce risk by verifying grounding conductor continuity and low resistance.
- Plan upgrades after a professional measures transients and documents findings.
Introduction
Panel surge rating tells you how much transient voltage a service panel or breaker can absorb before equipment sees damage. Homeowners often notice flickering lights or burned outlets but miss the link to surge capacity. Without the right surge protection, sensitive electronics and HVAC controls can fail after a single strong spike. Understanding ratings helps you match protection to real household risks.
Many panels list a number such as 10 kA or 65 kA which confuses homeowners trying to choose protection. Those numbers relate to the energy a device can handle, not the long term safety of the whole electrical system. A low-rated breaker or subpanel protector can leave expensive items exposed during storms or utility switching. That exposure becomes costly when appliances or home networks fail unexpectedly.
Symptoms of inadequate surge protection include repeated electronics failures, strange resets, and scorch marks around outlets or the panel. A professional inspects grounding conductors, checks voltage readings, and examines the service panel and surge protective device for visible damage. If you live near Tomball or manage properties in Richmond, TX you may notice aging panels that show these early warning signs. Acting on those signs reduces the chance of sudden, irreversible equipment loss.
Choosing the right protection depends on your panel surge rating plus the types of loads and equipment you own. Matching a surge protective device to the panel rating and ensuring proper grounding matters more than brand names. A trained electrician can provide measured readings and a written report showing current surge exposure and recommended upgrades. That diagnosis gives homeowners clear options to protect electronics and major systems.
What Panel Surge Rating Means And How It Works
Panel surge rating is the numeric limit that describes how much transient energy a panel or device can safely absorb. It shows the maximum surge current or energy the device can handle without failing. Homeowners often ask what a safe number looks like and how that number protects their appliances. A clear answer: higher ratings generally offer more capacity, but proper installation and grounding matter equally.
- kA ratings refer to peak surge current capacity.
- Joule ratings describe energy absorption over time.
- UL listed devices meet standardized test benchmarks.
- Type 1 or Type 2 indicates installation location and application.
- Coordination matches device capacity to panel limits.
Manufacturers express panel surge rating as kiloamperes (kA) or joules, which are not interchangeable measures. A homeowner may ask if a 65 kA rating is always better, and the short answer is it depends on the expected exposure and wiring. Professionals compare the rating to the available fault current at the service to ensure the device can handle real events. They also check that the surge device will not trip upstream breakers unnecessarily during normal operation.
To confirm a panel surge rating fits your home, a professional measures line voltage and available fault current at the service entrance. The electrician inspects the service panel, grounding conductor, and bonding to make sure the protective device will work as intended. Technicians often use a clamp meter for current checks and a voltage meter for steady-state readings during diagnosis. For homeowners wanting more detail, a written report helps explain whether the panel, device, and grounding need upgrades.
For properties in Richmond, TX or homeowners near Tomball, choosing a surge device also means matching local storm exposure and common equipment types. Many homeowners find value reading a product datasheet and looking for UL marking before buying. If you want to learn more about types of surge protective devices and how they install at the panel, see this detailed guide on surge protective device. When in doubt, contact a licensed electrician to evaluate your panel and recommend the correct protection based on measured readings.
Why Panel Surge Events Happen And When To Act
Power surges start when a sudden change in voltage pushes excess current through a home electrical system and can travel into the panel. Utility switching, nearby lightning strikes, and large inductive loads starting or stopping can all create fast transient spikes. A surge can pass through service conductors into branch circuits where sensitive electronics connect to outlets and surge protective devices attempt to clamp the energy. When surges exceed the device’s capacity, the panel surge rating becomes the limiting factor for how much energy the panel assembly can safely absorb.
Homeowners sometimes delay action because surges may cause intermittent nuisance behavior rather than immediate failure. Repeated resets of smart devices, audio distortion from speakers, or firmware corruption in appliances often indicate cumulative stress from smaller surges. A professional diagnosing the problem will record voltage readings, inspect the service panel and grounding conductor, and perform continuity checks on bonding points. They may also reference a fault current calculation to compare available fault current with the installed device ratings before recommending changes.
Deciding when to act depends on exposure and observed symptoms rather than a single number on the label. If your home has sensitive equipment, recent storm-related outages, or visible panel discoloration, upgrading protection merits prompt attention. For many homeowners, adding a coordinated whole-home surge protector at the service entrance reduces risk for downstream electronics and simplifies selection by matching device ratings to panel capacity. Learn more about whole-home options and installation locations in this guide on whole-home surge protector.
In a common situation, a homeowner in Tomball notices their modem and thermostat resetting after thunderstorms and reports intermittent outlet scorch marks. The electrician checks transient voltage with a meter, inspects the panel for melted lugs, and tests the grounding conductor for low resistance. After confirming equipment stress, the technician suggests a coordinated surge plan with appropriate panel-rated devices and documents findings in a written report. Property managers in Richmond, TX who see repeated electronics failures should use the same diagnostic steps to decide on upgrades or repairs.
Common Causes Of Surges In Residential Panels
Switching and coordination problems inside electrical gear often cause surges that reach the service panel. Loose connections at lugs or terminal screws can arc briefly and produce fast voltage spikes. Motor-driven equipment starting and stopping creates inductive kick that can travel back into branch circuits. A technician inspects connections with a visual check and torque wrench to confirm secure terminations.
Utility-side actions also create measurable transients that affect homes during recloser operations or grid switching events. These events send short high-energy pulses through the service conductors into the panel and downstream circuits. Surge protective devices at the panel try to clamp these pulses, but repeated exposure can degrade their capacity. Professionals measure transient activity with a voltage logger or transient recorder to determine frequency and magnitude.
Internal loads like HVAC compressors and large pumps generate surges when contactors engage or blades stall during startup. These inductive loads produce high dV/dt and current surges that stress breakers and electronics on the same circuit. An electrician inspects contactor wear, starts the unit while monitoring voltage dips, and records current using a clamp meter to verify sources. For persistent, unexplained transients homeowners should review recent appliance behavior and call for a focused inspection.
Lightning near the service can induce surges even without a direct strike, producing high-energy transients that exceed many panel surge ratings. Grounding and bonding defects worsen the problem by providing uneven return paths for surge currents into the panel enclosure. A professional tests ground resistance and checks bonding continuity between the service panel and grounding electrode system. Homeowners in Tomball and property managers in Richmond, TX should consider these checks after storm-related electronics issues occur.
Recognizing Warning Signs Of Surge Damage At Home
Look for unusual odors near outlets or the service panel, since burning insulation or plastic often signals overheated connections. Flickering lights that coincide with specific appliance use point to a shared circuit problem rather than intermittent utility issues. Scorch marks, melted plastic, or dark staining around receptacles indicate past overheating or partial arcing that a technician must inspect. If you notice these signs after a storm, document photos and power-off sensitive electronics until an electrician evaluates the panel.
- Repeated breaker trips on the same circuit
- Warm or hot faceplate on outlets
- Visible charring near wiring or lugs
- Unexplained device resets during storms
Another warning is appliances or electronics failing shortly after power events without visible external damage. A professional would measure transient voltages and record spike magnitude with a voltage logger to confirm surge damage. They also test outlet voltage under load and check continuity of bonding and grounding conductors for low-resistance paths. These checks reveal whether equipment stress came from surges or from internal device faults.
If you smell ozone or hear audible arcing inside the panel, treat it as an urgent safety concern and stop using affected circuits immediately. A trained electrician opens the panel to inspect breakers, bus bars, and lug tightness using a torque wrench and thermal camera for hot spots. They may remove suspect breakers for bench testing and compare observed faults with the panel surge rating to decide on replacement. Keep a written record of readings and observations for future warranty or insurance claims.
For property managers and homeowners in Richmond, TX and Tomball, tracking repeated minor failures helps show a pattern of cumulative surge damage over time. In a common situation, a homeowner notices smart home hubs failing after intermittent voltage spikes and then calls for a targeted inspection. The technician documents voltage fluctuations over several days and suggests coordinated surge protection or selective breaker replacement. Consider reading more about selective device options in the advanced circuit protection guide for next steps before scheduling work.
Breaker And Panel Labels Explained For Homeowners
Labels on breakers and the main panel give clues about capacity, interrupting rating, and manufacturer test marks. Look for markings like “CU/AL” for conductor compatibility and an interrupting rating in kiloamperes. These labels do not directly state a panel surge rating but help confirm the panel matches replacement breakers. A professional reads these markings to confirm safe component swaps during an inspection.
Breaker labels often include an “AFCI” or “GFCI” designation showing added protection types for specific circuits. Those labels help electricians decide where to install surge protective devices for sensitive loads such as HVAC controls and home networks. During diagnosis, a technician documents these circuit protections and checks breaker age against observed symptoms. Written notes of those labels support coordinated protection plans.
Panel labels also show bus rating and maximum breaker size which affect where a whole-home surge protector can mount safely. An electrician compares the surge device’s required connection point to the panel’s labeled spaces and bus capacity. If labels are faded or missing, the technician may remove the panel cover for a close inspection and torque check on lugs. That inspection prevents installing a surge device where the panel cannot safely accept the additional equipment.
Manufacturers sometimes label surge protective devices with a short life indicator or status flag that homeowners should understand. A pro inspects that flag, measures residual voltage, and records the device condition in a written report to confirm functionality. Homeowners in Tomball and property managers in Richmond, TX should keep label photos for future reference or warranty claims. These simple records make replacement decisions clearer when a panel upgrade becomes necessary.
Choosing Whole Home Surge Protection Devices
Choose a device type that coordinates with your panel surge rating and system layout, such as a Type 2 SPD for service-side installation. Verify the SPD’s maximum continuous operating voltage and short-circuit withstand rating match the panel’s labeled bus rating. A professional checks the panel bus and breaker interrupting ratings during installation to avoid overloading any component. Proper coordination reduces the chance an SPD will fail before the panel or cause nuisance trips.
Consider layered protection by combining a service-entry SPD with point-of-use protectors for high-value electronics and HVAC controls. Layering limits energy that reaches sensitive devices and extends the useful life of installed surge protective devices. An electrician will plan locations using the panel layout and critical load list gathered during inspection. This planning ensures that essential circuits like furnace control or security systems get prioritized protection.
Look for SPDs with clear status indicators and replaceable modules so future maintenance stays straightforward and predictable for homeowners. A status flag helps identify end-of-life without removing the cover, while modular designs allow partial replacements rather than swapping the entire unit. During selection, request datasheets showing clamping voltage, nominal discharge current, and UL listing to confirm suitability. These specifics help match device performance to the expected surge exposure recorded during diagnosis.
Proper grounding and bonding are essential for any whole-home solution to perform as rated, so include a ground resistance check in the purchase decision. A technician measures grounding conductor continuity and resistance using a meter and documents the results for your records. If grounding does not meet practical low-resistance paths, the electrician recommends corrective grounding work before installing an SPD. After installation, ask for a written report and photographs showing device mounting and status indicators for future reference in maintenance or warranty situations.
When To Call A Professional For Panel Surge Rating Issues
If you see repeated equipment resets, burning smells, or visible panel damage, call a licensed electrician promptly. A pro will perform live voltage checks and inspect grounding conductor continuity for low resistance. They will also open the panel to check lug tightness and look for thermal damage with a camera. Document photos and ask for a written report summarizing findings and recommended actions.
- An electrician measures transient voltages over time.
- They check grounding and bonding continuity.
- They torque lugs and inspect bus connections.
- They test breakers for proper operation.
When nuisance breaker trips accompany surge symptoms, a professional links those trips to underlying surge events or circuit faults. The technician may follow a systematic approach like the steps in our breaker tripping diagnosis to isolate root causes. Expect clamp meter readings, continuity checks, and selective circuit isolation during the inspection process. These diagnostics reveal whether a surge protective device or a breaker needs replacement.
If a whole-home SPD shows end-of-life indicators or the panel surge rating seems mismatched, schedule replacement work without delay. The electrician verifies SPD short-circuit withstand ratings against the panel bus before ordering parts. They will coordinate install timing to minimize downtime for critical systems like HVAC and security controls. For homeowners in Tomball or managers in Richmond, TX, keep records of tests and install photos for warranty or insurance needs.

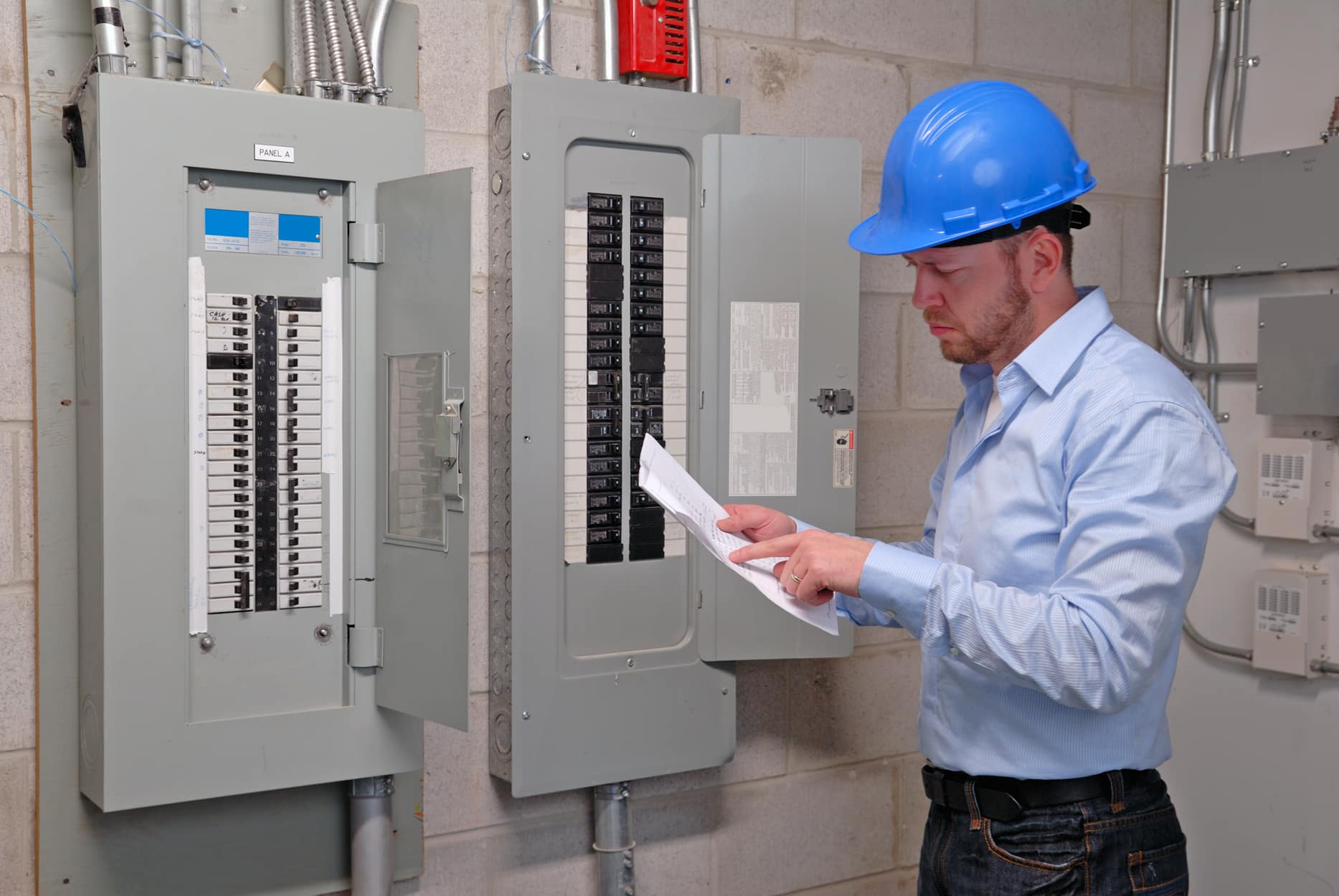

Maintenance Steps To Prevent Future Surge Damage
Keep surge protective devices visually inspected every six months to catch discoloration, loose hardware, or blown status indicators before failure. A homeowner can look for unusual smells near the device, but always de-energize circuits before opening enclosures. A licensed electrician should test the SPD’s residual voltage and confirm the module connection using a voltage meter and documented readings. Maintain written records of inspections to compare condition changes over time and support warranty claims.
Test grounding conductor continuity annually because poor grounding reduces SPD effectiveness and raises risk to connected equipment. An electrician will perform a ground resistance check with a meter and inspect bonding points at the service panel and grounding electrode. If resistance is high, corrective grounding work can include tightening clamps or adding electrodes to improve the return path. Keep photos and test results in your home maintenance file for future reference.
Plan for component replacement by tracking the SPD’s nominal discharge ratings and expected life indicated on the datasheet or device flag. Replace SPDs showing end-of-life indicators or modules near their rated impulse count to avoid sudden loss of protection. Coordinate replacements to match the panel surge rating so the new device aligns with bus and breaker interrupting capacities. Request a written report after any replacement showing measured residual voltages and device ratings for your records.
Limit surge exposure through simple homeowner actions like unplugging high-value electronics during storms and avoiding long power strips without surge modules. For layered protection and professional installation options, consider scheduling a whole-house surge protector install with a licensed electrician familiar with coordinating SPDs and panel ratings. In a common situation, a property manager in Richmond, TX notices repeated modem failures and schedules testing that reveals high transient counts along the service entrance. Homeowners in Tomball should keep a maintenance log and involve a pro if inspections show thermal damage or unstable readings.
Frequently Asked Questions
What does a panel surge rating number mean for my home?
The panel surge rating is the maximum surge current or energy level the panel or installed device can withstand without failing. It helps you compare protection levels for panels, breakers, and surge devices when choosing upgrades. Higher ratings usually mean better protection against large voltage spikes, but ratings alone do not guarantee full home protection. If you see damage, burning smells, or repeated tripped breakers, stop and call a licensed electrician to inspect and recommend fixes.
How do kA and joule ratings differ on surge devices?
kA (kiloamperes) measures the maximum surge current a device can divert without failing, showing its current-handling capacity. Joule rating measures energy absorption capacity, indicating how much total surge energy the device can absorb before degrading. Together they define a panel surge rating’s ability to stop and absorb lightning or switching spikes, but neither alone guarantees full protection. If you suspect frequent or high-energy surges, exercise caution and hire a licensed electrician to assess and install suitable surge protection.
How can a pro confirm my panel surge rating matches risk?
A pro will first inspect your service panel label and surge protective device markings to read the Panel surge rating and model. They will measure incoming voltage and look for signs of past surges like burned lugs, melted insulation, or tripped AFCI/GFCI reports. Technicians may use a voltage logger and clamp meter to record transient events and compare measured risk to the device’s short‑circuit current rating and voltage protection level. If hazards exist, caution is required and you should hire a licensed electrician to make corrections and document findings.
When should I upgrade protection based on panel surge rating?
Upgrade surge protection when your panel surge rating falls below device needs or after repeated transient events cause equipment failures. Look for symptoms like flickering lights, tripped breakers, or damaged electronics and document occurrences. A professional will inspect the service panel, check grounding and bonding, and measure clamping performance to confirm risks. If you suspect inadequate protection, stop using vulnerable equipment and contact a licensed electrician because working on the service panel carries safety risks.
What signs show a panel or SPD is failing after storms?
After storms, homeowners may notice scorch marks, melted insulation, or burn smells near the service panel or SPD enclosure. Tripped breakers that won’t reset or repeatedly trip under normal load can indicate SPD or panel damage. Burnt or discolored SPD modules, loose connections with arcing sounds, or visible corrosion are warning signs. Exercise caution around the panel and contact a licensed electrician to inspect readings, grounding, and component condition.
